WiChain: Decentralized LAN Chat with Blockchain-backed History

Overview

WiChain is a peer-to-peer chat application for local networks (LAN) that combines a modern desktop UI (React + Tauri) with a tamper-evident blockchain ledger for chat history. It features:

• Direct peer and group messaging over LAN (UDP, no central server)
• Signed, verifiable messages (Ed25519)
• Blockchain-backed chat history (append-only, tamper-evident)
• Ephemeral group chats (deterministic group IDs)
• Simple obfuscation for message confidentiality (SHA3-512 XOR, not real encryption)
• Trust scoring for peers

This document provides a deep-dive into the technical implementation, architecture, and how blockchain is used in WiChain, with a step-by-step example.

Architecture

+-------------------+         +-------------------+
|   Frontend (UI)   | <----> |   Tauri Backend   |
|  React + TS + CSS |         |  Rust + Tauri     |
+-------------------+         +-------------------+
         |                               |
         |  Tauri API (invoke/emit)      |
         v                               v
+-------------------+         +-------------------+
|   Blockchain      |         |   Network (UDP)   |
|   (Rust crate)    |         |   (Rust crate)    |
+-------------------+         +-------------------+
         |                               |
         +-------------------------------+
         |      wichain-core/types        |
         +-------------------------------+

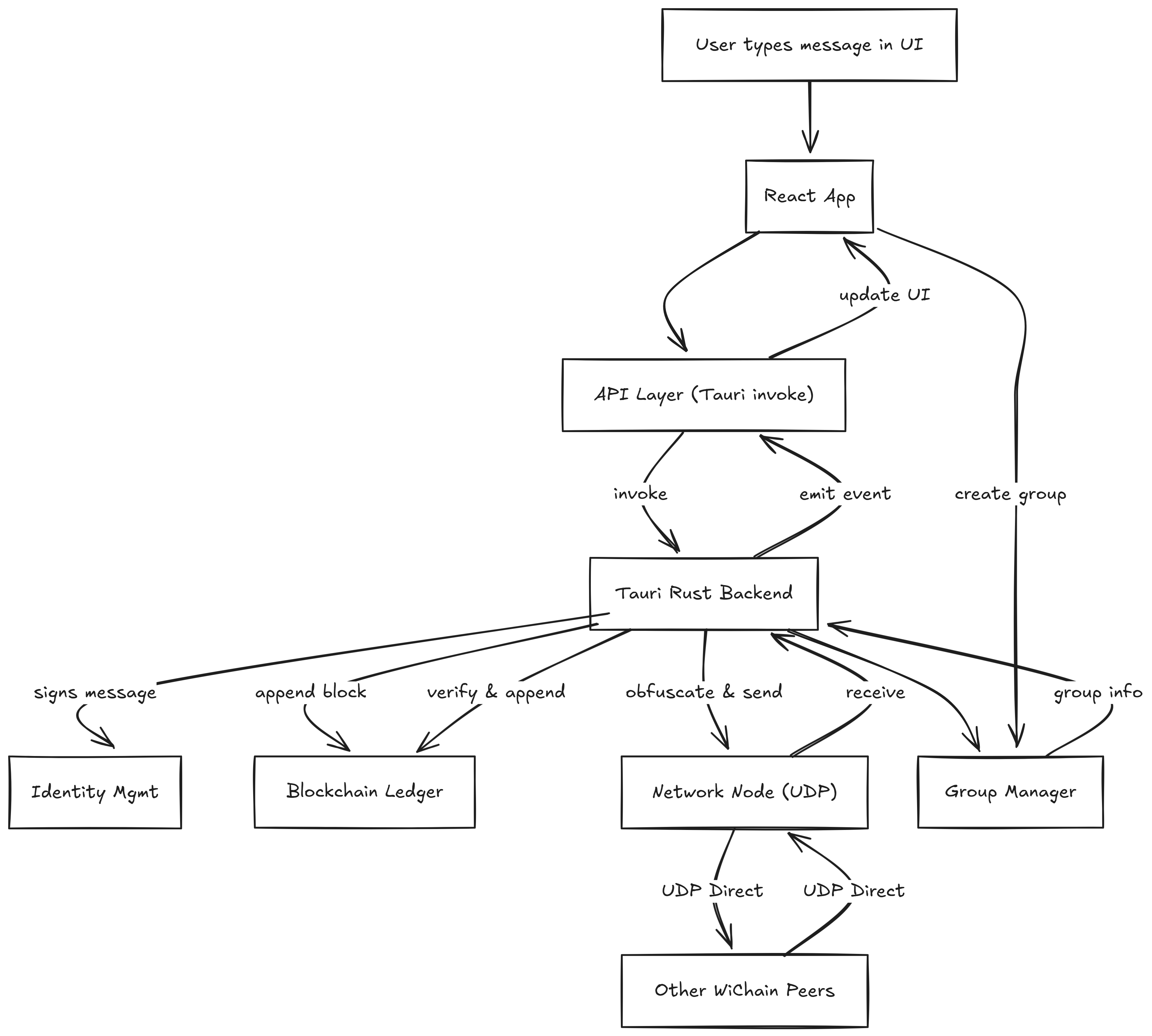

Project Flow Diagram

Major Components & Files

1. wichain-blockchain

• block.rs: Defines the Block structure (index, timestamp, previous hash, nonce, data, hash). Data can be plain text, a JSON array of signed messages, or a direct message object.
• blockchain.rs: Defines the Blockchain struct (vector of blocks), methods for adding/validating blocks, saving/loading chain, and summarizing for UI.
• lib.rs: Exposes the blockchain API.

2. wichain-core

• message.rs: Defines SignedMessage (UUID, sender, recipient, timestamp, content, Ed25519 signature). Handles signing, verification, and legacy message support.
• trust.rs: Implements local trust scoring for peers (0–100, decays over time, increases with valid data).
• lib.rs: Exposes identity management, key encoding/decoding, and re-exports message/trust logic.

3. wichain-network

• lib.rs: Handles peer discovery (UDP broadcast), direct messaging (UDP unicast), peer tracking, and exposes network events to the backend.

4. wichain-backend

• src-tauri/src/main.rs: The main Tauri backend. Handles identity, blockchain, networking, group management, message obfuscation, and exposes Tauri commands/events.
• src-tauri/src/group_manager.rs: Manages ephemeral groups (IDs are SHA3-256 hashes of sorted member pubkeys).
• src-tauri/src/crypto_utils.rs: Simple SHA512-based XOR for message obfuscation (not strong encryption).

5. wichain-backend/frontend

• src/App.tsx: Main React app. Handles UI state, peer/group selection, chat, onboarding, and real-time updates.
• src/lib/api.ts: API bindings for Tauri backend commands (identity, peers, groups, chat, reset).
• src/components/: UI components for chat, peer list, onboarding, group modal, etc.

Data Flow & Message Lifecycle

1. Identity: On first run, a user identity (Ed25519 keypair + alias) is generated and stored locally.
2. Peer Discovery: Each node broadcasts its presence over UDP. Peers are tracked by pubkey and alias.
3. Sending a Message:
   • User selects a peer or group and types a message.
   • The message is signed (Ed25519) and wrapped in a ChatSigned struct.
   • The message is obfuscated (SHA3-512 XOR of both pubkeys, then base64) for confidentiality.
   • The obfuscated message is sent over UDP directly to the peer(s).
   • The clear (signed) message is appended to the local blockchain.
4. Receiving a Message:
   • Incoming UDP payloads are deobfuscated using the local and sender’s pubkeys.
   • The backend verifies the signature.
   • The message is appended to the local blockchain.
   • The frontend is notified via a Tauri event.
5. Groups:
   • Groups are ephemeral, identified by a hash of sorted member pubkeys.
   • Group messages are signed, obfuscated per member, and sent to all group members.

Blockchain in WiChain: How It Works

• Purpose: The blockchain is a local, append-only ledger of all chat activity. It provides tamper-evidence (not consensus or global state).
• Block Structure:
  • index: Block number
  • timestamp_ms: Milliseconds since epoch
  • previous_hash: Hash of the previous block
  • nonce: (unused, for compatibility)
  • data: Opaque string (can be plain text, JSON array of signed messages, or direct message object)
  • hash: SHA256(index || timestamp_ms || previous_hash || nonce || data)
• Genesis Block: The first block is always a “Genesis Block.”
• Adding a Block: When a message is sent or received, a new block is created with the message data and linked to the previous block by hash.
• Validation: The chain can be validated by checking that each block’s previous_hash matches the actual hash of the previous block, and that each block’s hash is correct. Deep validation also verifies all embedded signatures.
• Persistence: The blockchain is saved as a JSON file on disk.

Example: Alice Sends a Message to Bob

1. Alice types “Hi Bob!” and selects Bob as the peer.
2. The backend creates a ChatBody:

   {
     "from": "AlicePubKeyB64",
     "to": "BobPubKeyB64",
     "text": "Hi Bob!",
     "ts_ms": 1712345678901
   }


3. The backend signs this with Alice’s private key, producing a ChatSigned:

   {
     "from": "AlicePubKeyB64",
     "to": "BobPubKeyB64",
     "text": "Hi Bob!",
     "ts_ms": 1712345678901,
     "sig_b64": "...base64 signature..."
   }


4. The message is obfuscated using SHA3-512 XOR of Alice and Bob’s pubkeys, then base64-encoded.
5. The obfuscated message is sent over UDP directly to Bob.
6. The clear (signed) message is appended to Alice’s local blockchain as a new block:

   {
     "index": 2,
     "timestamp_ms": 1712345678901,
     "previous_hash": "...",
     "nonce": 0,
     "data": "{\"from\":\"AlicePubKeyB64\",...}",
     "hash": "..."
   }


7. Bob receives the UDP packet, deobfuscates it, verifies the signature, and appends the message to his own blockchain.
8. Both Alice and Bob now have a tamper-evident record of the chat.

Security Model

• Authenticity: All messages are signed (Ed25519). Recipients can verify the sender.
• Confidentiality: Messages are obfuscated (SHA3-512 XOR), but this is not strong encryption—just basic privacy on the LAN.
• Integrity: The blockchain ensures that chat history cannot be tampered with undetectably.
• Trust: Each node tracks trust scores for peers, decaying over time and increasing with valid signed data.
• Groups: Group IDs are deterministic hashes of member pubkeys. Group messages are obfuscated per member.

More Technical Details

Message Obfuscation (Confidentiality)

• WiChain uses a SHA3-512 hash of both users’ public keys to create a 64-byte mask.
• The message is XOR’d with this mask and base64-encoded before being sent over UDP.
• This is not strong encryption, but prevents casual snooping on the LAN.

Group Messaging

• Groups are ephemeral and identified by a deterministic hash of sorted member public keys.
• When sending a group message, the message is signed and obfuscated separately for each member, then sent directly to each peer.

Blockchain Validation

• Each block’s hash is computed as SHA256(index || timestamp_ms || previous_hash || nonce || data).
• The chain is validated by checking hash links and recomputing hashes.
• Deep validation also verifies all embedded message signatures.

Trust System

• Each peer is tracked with a trust score (0–100).
• Trust increases with valid signed data, and decays over time if the peer is inactive.
• Stale peers are dropped after a configurable period.

Security Limitations

• There is no global consensus or distributed ledger—each node maintains its own local blockchain.
• Obfuscation is not cryptographically secure; for real privacy, use proper encryption.

Development & Extensibility

• Rust Workspace: Modular crates for blockchain, core logic, networking, types, and backend.
• Frontend: Modern React + TailwindCSS, with Tauri for desktop integration.
• Easy to Extend: Add new message types, consensus, or real encryption as needed.

Quickstart

1. Build the Rust workspace (cargo build in wichain/).
2. Build the frontend (npm install && npm run build in wichain-backend/frontend/).
3. Run the Tauri app (cargo tauri dev in wichain-backend/).
4. Open the app on two+ LAN devices and start chatting!

Credits & License

• Open source, student-friendly, and designed for learning and experimentation.
• Built with ❤️ using Rust, React, and Tauri.
